Connection Way

Connection Way#

Scanner can be connected to your device via bluetooth, USB receiver or USB cable, you can choose one of the connection way to connect scanner with your device.

Important

  • Scanning a setting code to switch modes is not supported. You must use the physical switch on the bottom of the scanner to change connection modes.

Working Via USB Cable#

Connect scanner with your device via USB cable. If you use US keyboard, it’s plug and play. If you use other type of keyboard , please refer to “keyboard language” to configure the keyboard language before you use it.

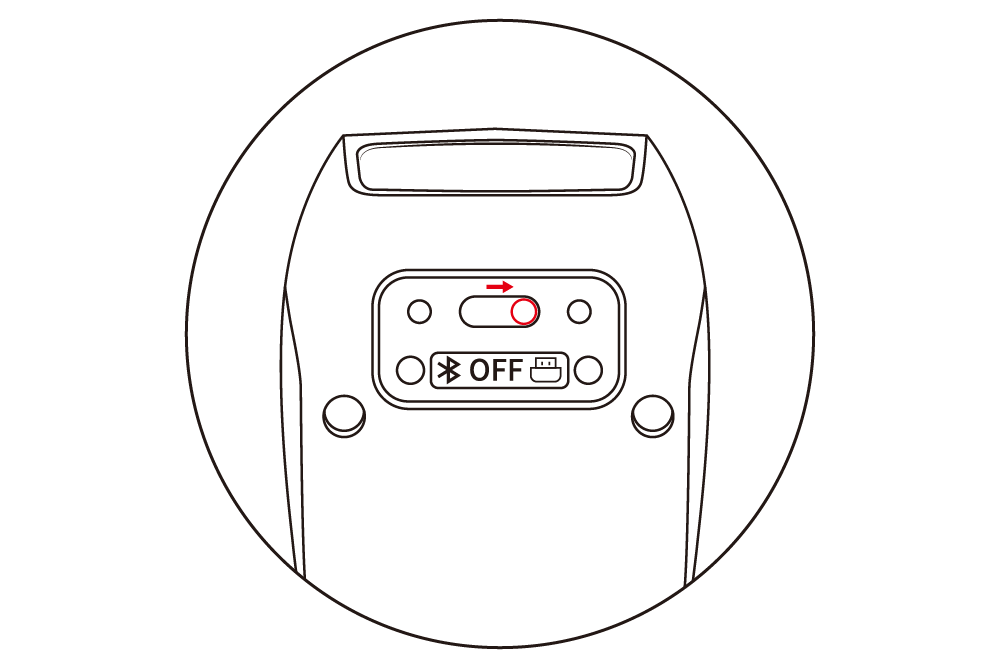

Working Via USB Dongle (Wireless Mode)#

../../media/cs-rf.png

  • ① Slide the switch on the bottom of the scanner to the right.

  • ② Plug the USB dongle into your computer.

  • ③ If you’re using a U.S. keyboard layout, it’s plug and play.

  • ④ If you’re using a different keyboard layout, please refer to the “ Keyboard Language” section to configure the correct settings before use.

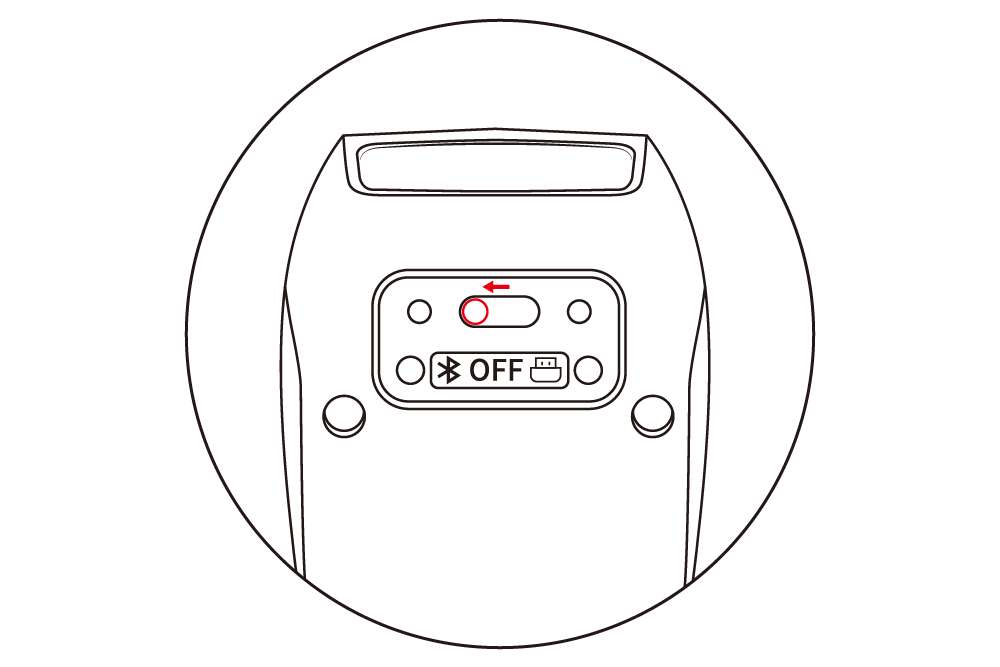

Working Via Bluetooth#

../../media/cs-bt.png

  • ① Slide the switch on the bottom of the scanner to the left.

  • ② Turn on Bluetooth on your host device and look for CPRO barcode scanner in the list of available devices. Tap it to pair.

  • ③ The default keyboard layout is US. If you’re using a different keyboard layout, please set the correct keyboard language before using the scanner.
